Rack and Pinion
Precision gear racks are essential transmission components designed to support and guide linear motion in CNC machines and automation systems. By converting rotary motion into precise linear movement, these racks play a critical role in ensuring positioning accuracy, load stability, and smooth power transmission across industrial equipment.Compared with traditional belt drives or lead screw mechanisms, precision gear racks provide higher rigidity, superior load-bearing capacity, and more stable long-distance motion performance, making them a reliable solution for high-speed, high-precision linear drive applications.
Product Introduction
Our precision rack is a core transmission component designed for accurate linear motion and reliable power transfer in industrial automation systems. Manufactured from high-quality alloy and carbon steels such as C45, S45C and SCM440, the rack undergoes precision CNC machining and controlled heat treatment processes, including high-frequency hardening or quenching, to ensure stable tooth geometry and consistent performance.With carefully controlled tooth profiles, fine surface finishing, and tight pitch error tolerance, this rack delivers smooth meshing, low backlash, and stable motion even under continuous or high-load operation. The hardened tooth surface provides excellent wear resistance and long service life, making it suitable for demanding applications that require durability and positioning accuracy. Available in straight tooth, helical tooth, and oblique tooth series with multiple modules and sizes, our racks can be flexibly selected to match different pinions and motion requirements. We welcome customers to contact us for specification confirmation and application-specific selection support.

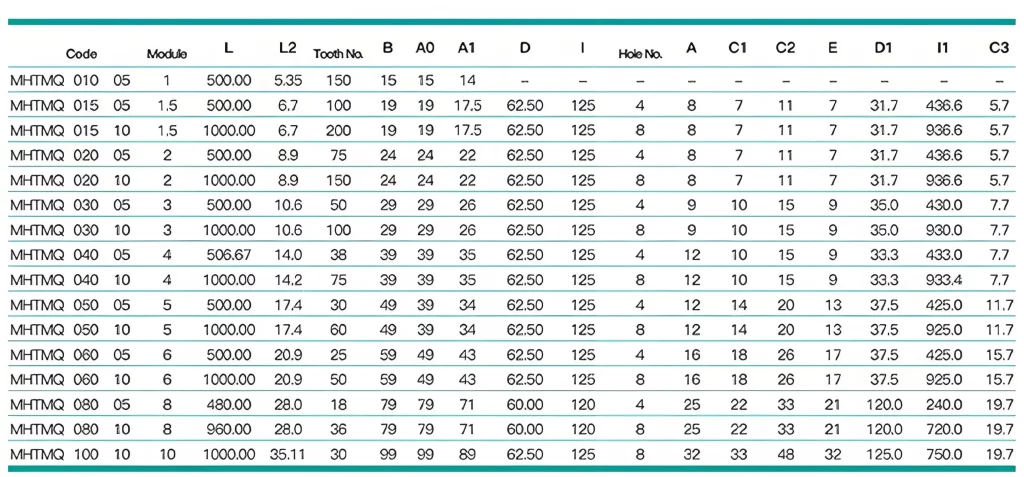

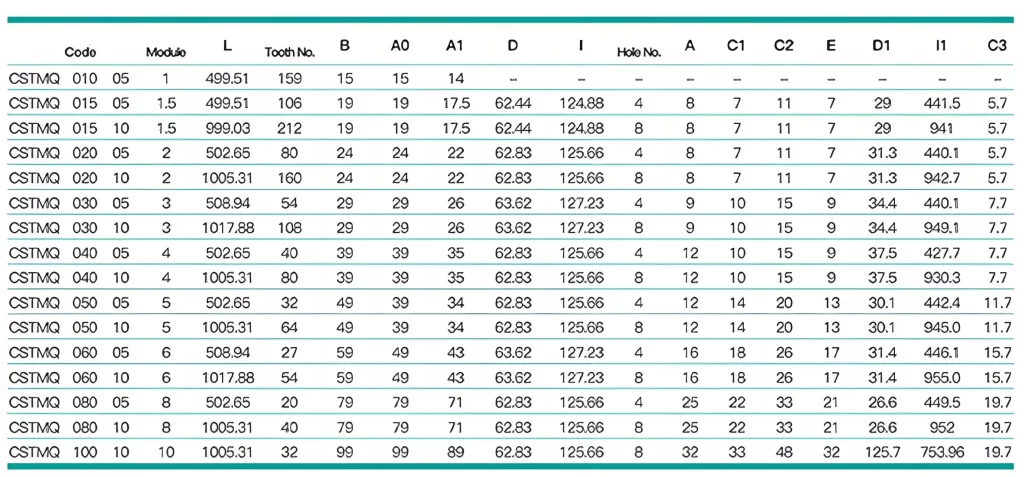

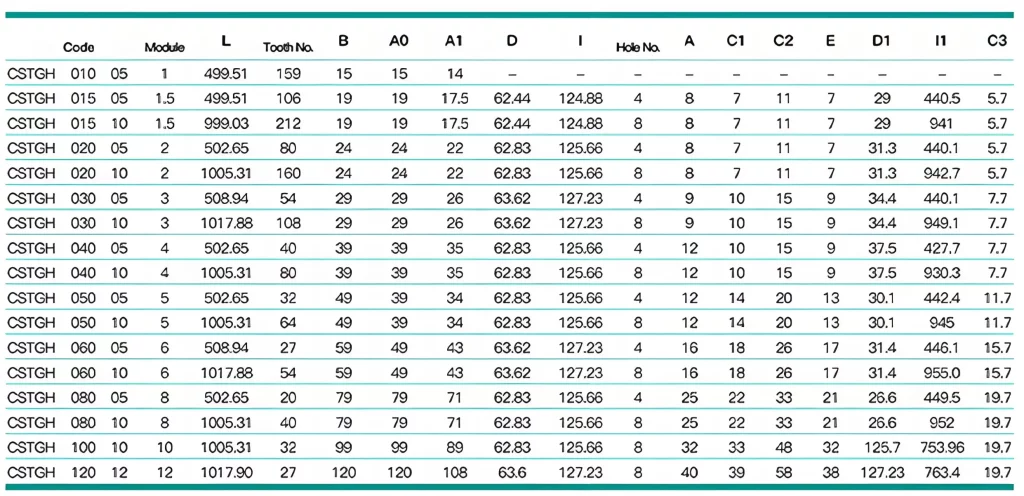

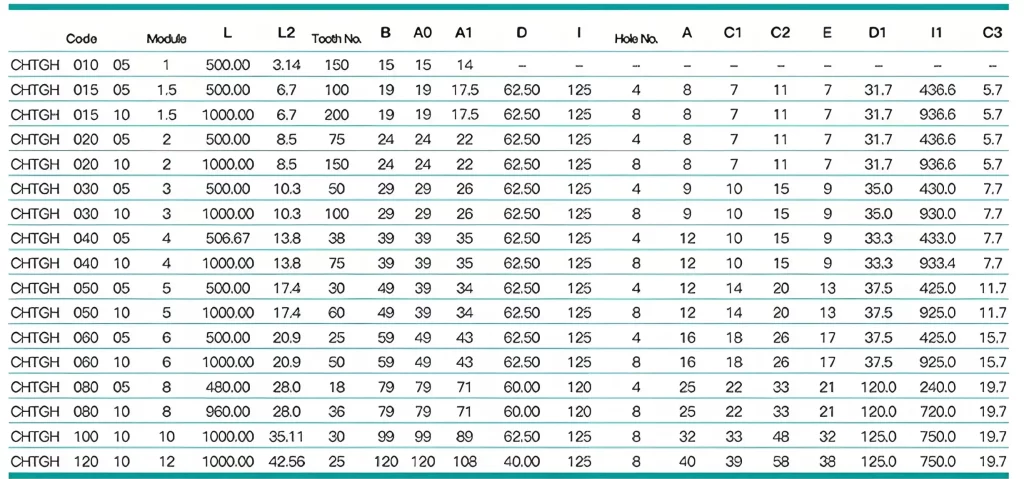

Product Specification
| Item | Specification | Item | Specification |
| Material | C45 steel | Processing | Precision Casting |
| Weight (kg) | 8 | Place of Origin | Shandong, China |
| Model Number | 1.25M | Warranty | 3 Months |
| Video outgoing-inspection | Provided | Machinery test report | Provided |
| Brand Name | lonqiao | Standard or nonstandard | Standard |
| Material | C45 steel | Color | Silvery white, black |
| Scope of use | Engraving machine drive system | Product features | High precision and high bearing strength |
Product Features
High load capacity
Manufactured from high-strength alloy steel with controlled heat treatment, the rack is designed to withstand continuous high loads while maintaining stable transmission performance in demanding motion systems.
Excellent wear resistance
Through precision machining and surface hardening processes, the rack teeth exhibit strong wear resistance, effectively reducing tooth surface abrasion and extending service life under long-term operation.
High dimensional accuracy
The rack is produced using CNC grinding and strict tolerance control, ensuring consistent tooth profile accuracy and smooth meshing with pinions for reliable positioning performance.
Stable transmission performance
Optimized tooth geometry and uniform pitch accuracy help minimize vibration and backlash during motion, enabling smooth, stable, and repeatable linear movement in automation applications.
Strong structural rigidity
The solid rack structure provides high rigidity and resistance to deformation, maintaining alignment and transmission accuracy even under heavy loads and long stroke lengths.
Product Application
Precision motion transmission systems are widely used in modern CNC and automation equipment, where stable force transfer, accurate positioning, and long-term reliability are essential. In these systems, mechanical components must maintain high rigidity and dimensional accuracy under continuous load, ensuring consistent motion performance in high-speed and high-precision operations.
Rack components play a critical role in engraving machines and drive systems, converting rotational motion into precise linear movement. Manufactured from C45 steel with precision processing, the rack is well suited for engraving machine drive systems that require high bearing strength and positioning accuracy. With standardized specifications and stable performance, it is commonly applied in CNC engraving machines, woodworking equipment, and automated linear transmission setups, helping ensure smooth operation, reliable accuracy, and long service life in industrial applications.
-
High precision rack transmission -
C45 steel durable construction -
Strong load bearing capacity -
Table engraving machine drive
Packing, Storage, Handling and Transportation
Precision electronic machinery refers to various types of high-tech equipment, such as semiconductor devices and scientific instruments. These sophisticated machines demand a high level of precision in their design, construction and operation, making them critical tools in many advanced industries. The use of precision electronic machinery has revolutionized many fields, enabling greater accuracy and efficiency in everything from medical research to manufacturing. As technology continues to advance, the demand for precision electronic machinery will only continue to grow.
Linear guides are an incredibly versatile component that can be incorporated into a wide range of automation equipment, including textile machinery, printing machinery, drug dispensers, and physical therapy machines. Additionally, they can be found in blood testing equipment, airway cleaning equipment, and other similar devices. Because of their high level of precision and reliability, linear guides are an ideal choice for these types of applications, helping to ensure that everything runs smoothly and efficiently. Whether you are looking to automate a new piece of equipment or upgrade an existing one, incorporating HGR linear guides is a smart choice that will pay off in the long run.
-
Laser Engraving & Cutting Machines -
Smoother motion with low friction
