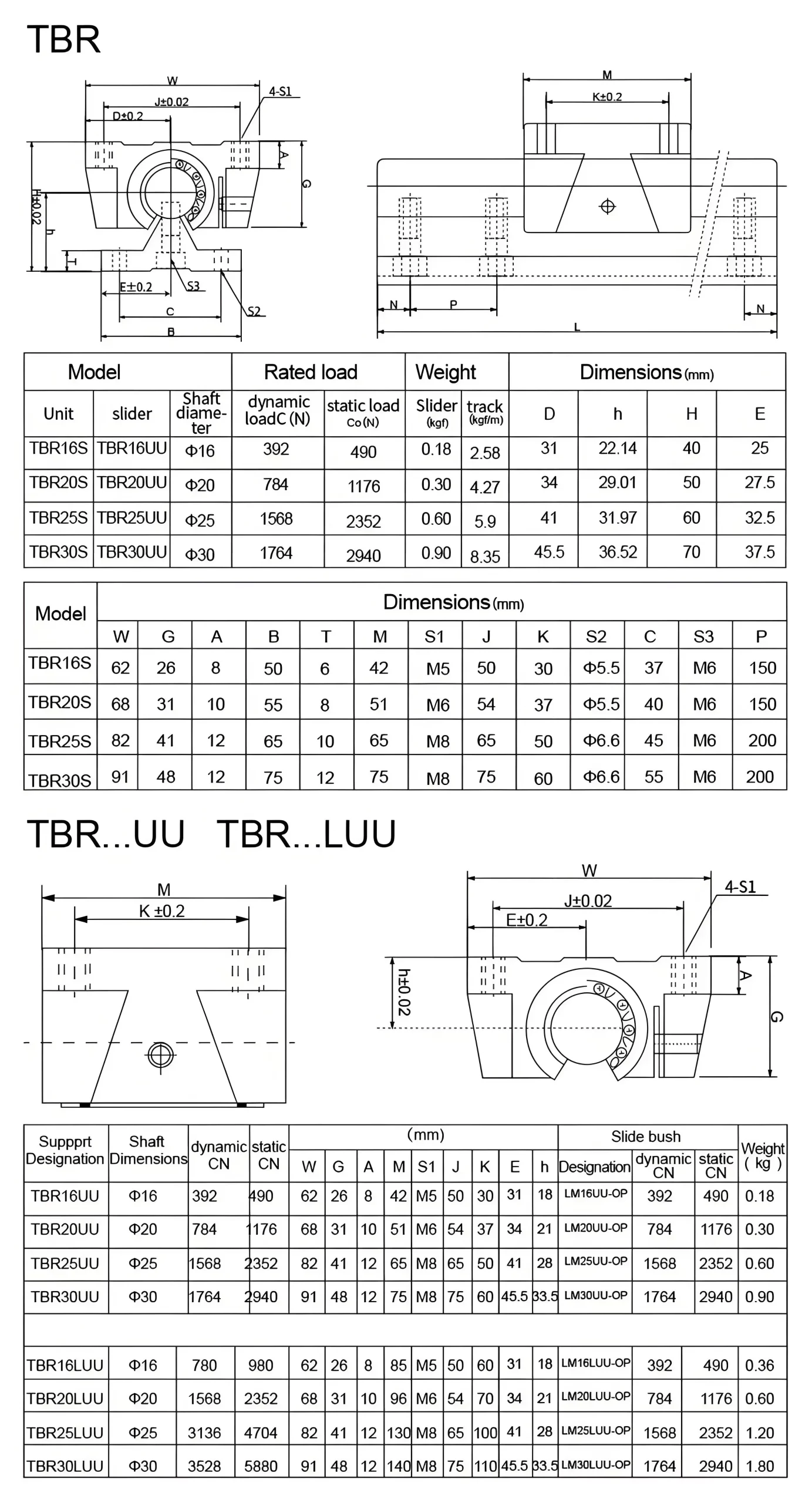

TBR Support Rail
SBR linear guide rails are essential linear motion components used in CNC machining parts and automatic systems to support and guide moving assemblies along a stable straight path. Compared with traditional unsupported shafts or simple slide structures, SBR linear guide rails provide higher running stability, improved accuracy, and more reliable performance for continuous linear motion applications.
Product Introduction
Our SBR linear guide rail is designed to provide stable and reliable linear motion for CNC machining parts and automatic systems. The slide rail and slide block structure ensures smooth operation with high running performance, meeting the demands of continuous linear movement in industrial applications. Manufactured with aluminum and stainless steel materials and equipped with bearing core components, this system delivers high accuracy and consistent motion performance. Its robust design supports precise guidance during operation while maintaining long-term stability. Available for various linear stage and automation requirements, SBR linear guide rails are well suited for different CNC and linear motion solutions. We welcome customers to contact us for product selection and application support.
Product Specification
| Item | Specification | Item | Specification |
| machinery test report | Provided | video outgoing-inspection | Provided |
| material | Aluminum + stainless Steel | model number | SBR |
| warranty | 6 Months | core components | Bearing |
| brand name | LQ | weight (kg) | 0 |
| place of origin | shandong | Product name | SBR linear guide rail |
| Type | Linear Motion Guideway | Application | Cnc Machining Parts |
| Performance | High Running Performance | Feature | High Accuracy |
| Structure | Slide Rail + Slide Block | Color | Silver |
| Brand | LONGQIAO | Name | Linear Stages Xy |
Product Features
High efficiency
The SBR linear guide rail delivers smooth and stable linear motion with high running performance, supporting continuous operation in CNC machining parts and automatic systems.
Stable wear performance
Built with aluminum and stainless steel materials and bearing core components, the SBR system maintains reliable performance during long-term use under industrial working conditions.
Strong structural stability
The slide rail and slide block structure provides consistent support along the motion path, helping maintain straight-line movement during repeated operation.
High accuracy
Designed for linear motion guideway applications, SBR linear guide rails offer dependable guiding accuracy suitable for linear stages and CNC-related motion systems.
Low operating noise
Optimized structure and bearing components contribute to smooth movement with reduced noise, supporting stable operation in automated equipment.
Product Application

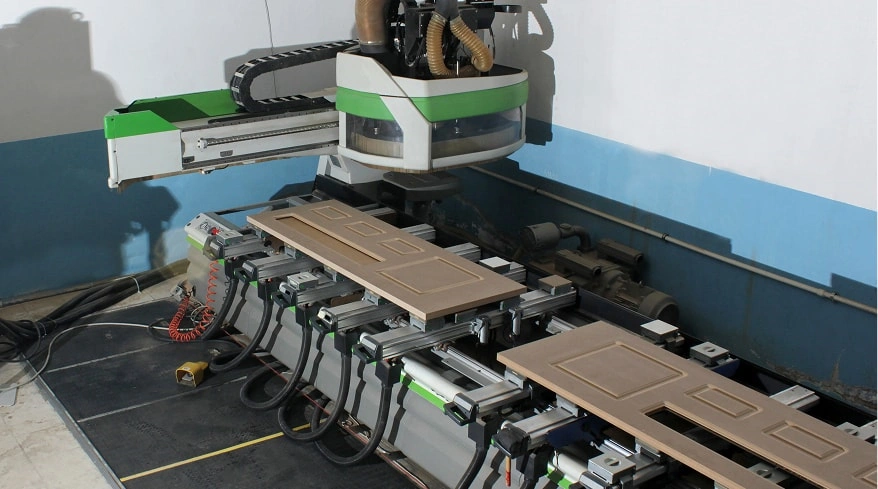

SBR linear guide rails are widely used in CNC machining parts and automated motion systems where stable linear movement and high running performance are required. Their supported rail structure provides reliable guidance and rigidity, making them suitable for equipment that demands consistent motion accuracy during continuous operation.
SBR linear guide systems can be integrated into various automatic systems, linear stages, and CNC-related applications, where slide rail and slide block structures are needed to achieve smooth, accurate positioning. With high accuracy performance and stable operation, SBR linear guide rails are well suited for upgrading existing equipment or building new automation solutions that require dependable linear motion support.
-
Precise & Stable Linear Guidance -
Low-Friction Linear Motion -
Stable Quality & Accurate Dimensions -
Smoother motion with low friction
Packing, Storage, Handling and Transportation
Precision electronic machinery refers to various types of high-tech equipment, such as semiconductor devices and scientific instruments. These sophisticated machines demand a high level of precision in their design, construction and operation, making them critical tools in many advanced industries. The use of precision electronic machinery has revolutionized many fields, enabling greater accuracy and efficiency in everything from medical research to manufacturing. As technology continues to advance, the demand for precision electronic machinery will only continue to grow.
Linear guides are an incredibly versatile component that can be incorporated into a wide range of automation equipment, including textile machinery, printing machinery, drug dispensers, and physical therapy machines. Additionally, they can be found in blood testing equipment, airway cleaning equipment, and other similar devices. Because of their high level of precision and reliability, linear guides are an ideal choice for these types of applications, helping to ensure that everything runs smoothly and efficiently. Whether you are looking to automate a new piece of equipment or upgrade an existing one, incorporating HGR linear guides is a smart choice that will pay off in the long run.
-

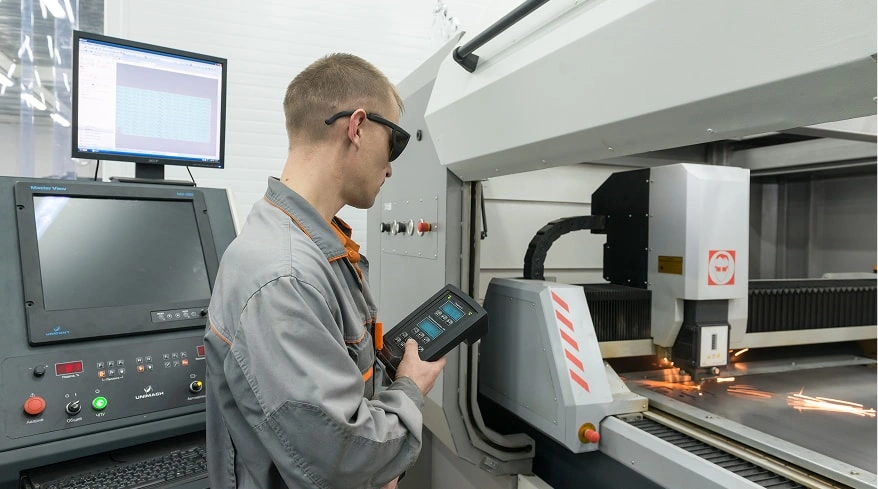

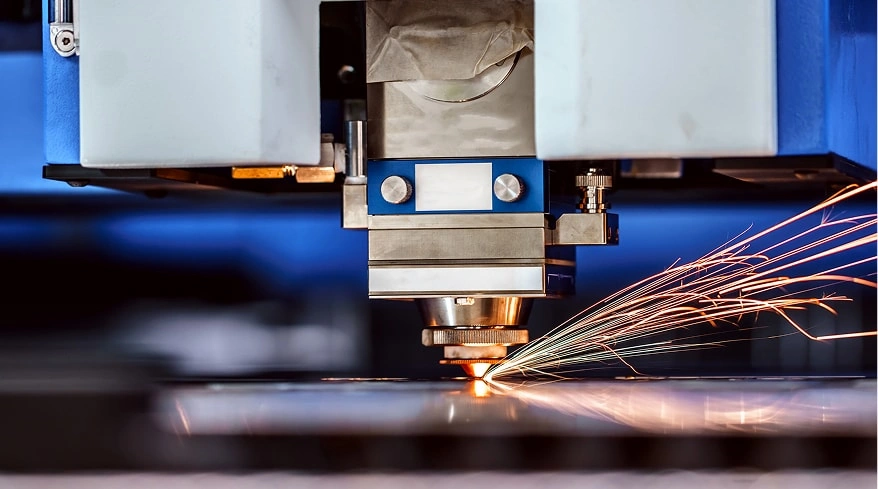

Laser Engraving & Cutting Machines -
Smoother motion with low friction
